Pneumatic Wheelchair Lift
Description

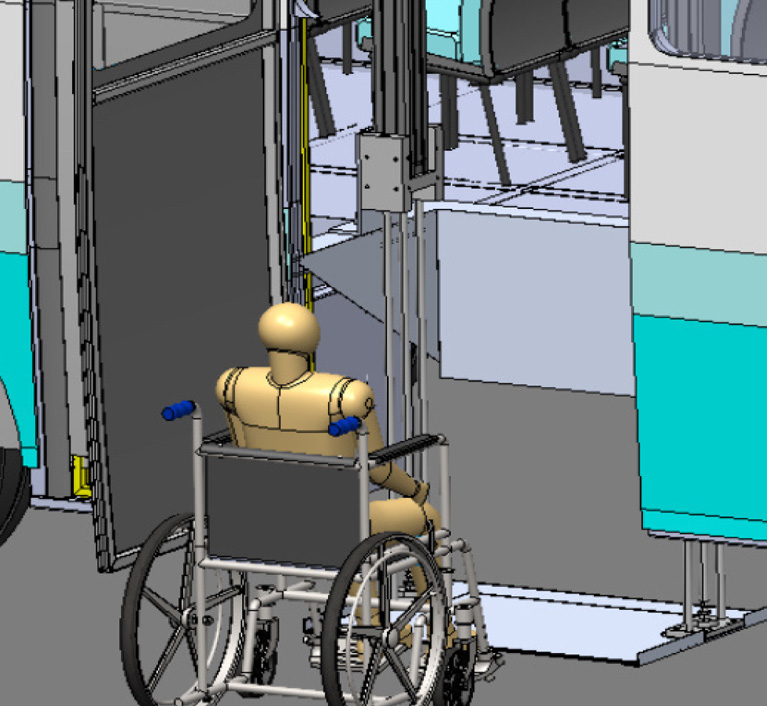

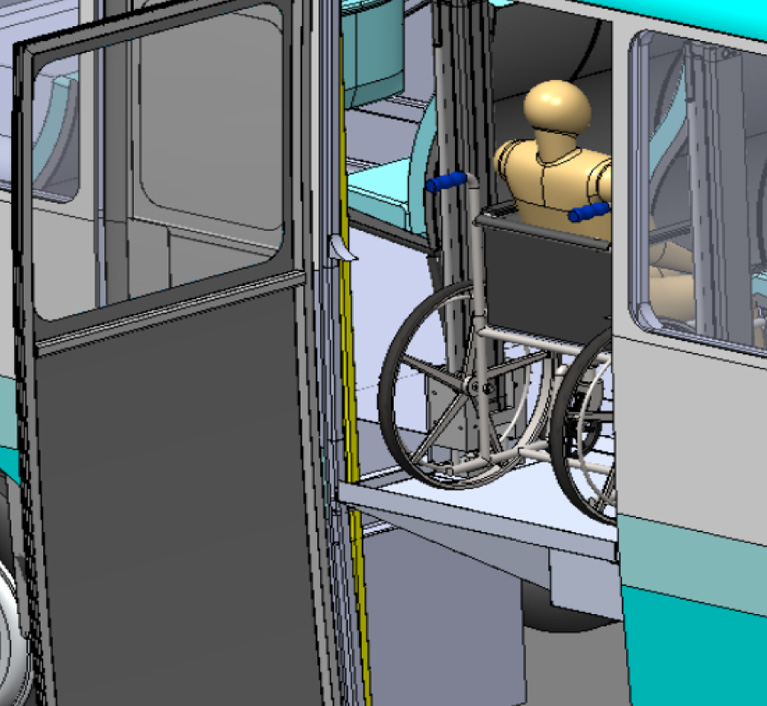

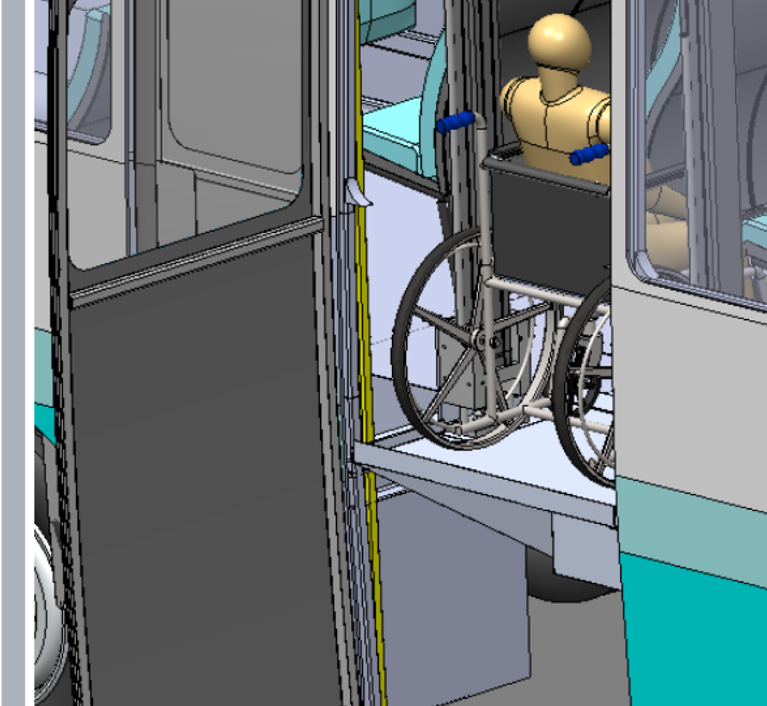

Developed exclusively for Haryana Roadways, the Pneumatic Wheelchair Lift enables safe, efficient boarding and deboarding of wheelchair users in buses. The system operates using pneumatic (air pressure-based) technology, eliminating the need for hydraulic or electric actuators making it ideal for public transport applications where simplicity, durability, and low maintenance are key.
Advantages
01
Minimal seat displacement: Only 2 seats are removed, compared to 6 in typical electric lifts
02
Versatile application: Compatible with both low-floor and high-floor bus designs.
03
Energy-efficient: Significantly lower power consumption than electric systems.
04
Reduced maintenance: Fewer components result in lower wear and tear.
Technical Data
- Operating Pressure: 5–6 Bar (Pneumatic)
- Power Supply: 24 V DC
- Power Consumption: 10 W
- Air Consumption per Stroke: 100 L
- Installation Options:
Can be embedded directly on the chassis
Can be installed in a floor cutout (required size: 1000 mm x 1500 mm) - Max Load Capacity: 200 kg

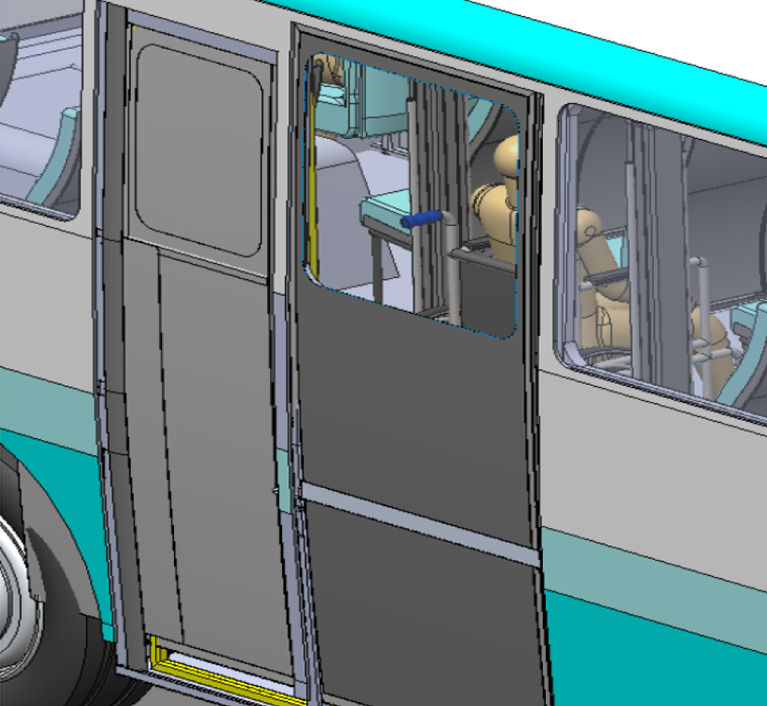

- Operation Access: Via dedicated side body door
Safety Features
- Lift operates only when the side body door is fully open, ensuring user safety.
- Position indicators on the driver’s dashboard via dedicated light signals.
- Onboard pendant control for safe and convenient operation.
- Audible buzzer alert during lift motion to notify the driver and passengers.
- Emergency stop button for immediate halt in case of malfunction.
