Manual & Pneumatic Entrance Ramps

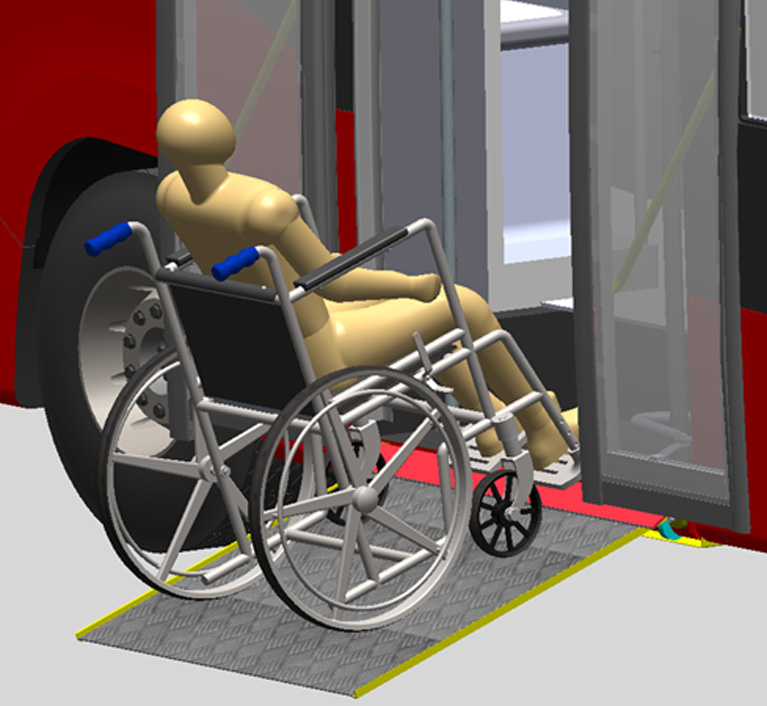

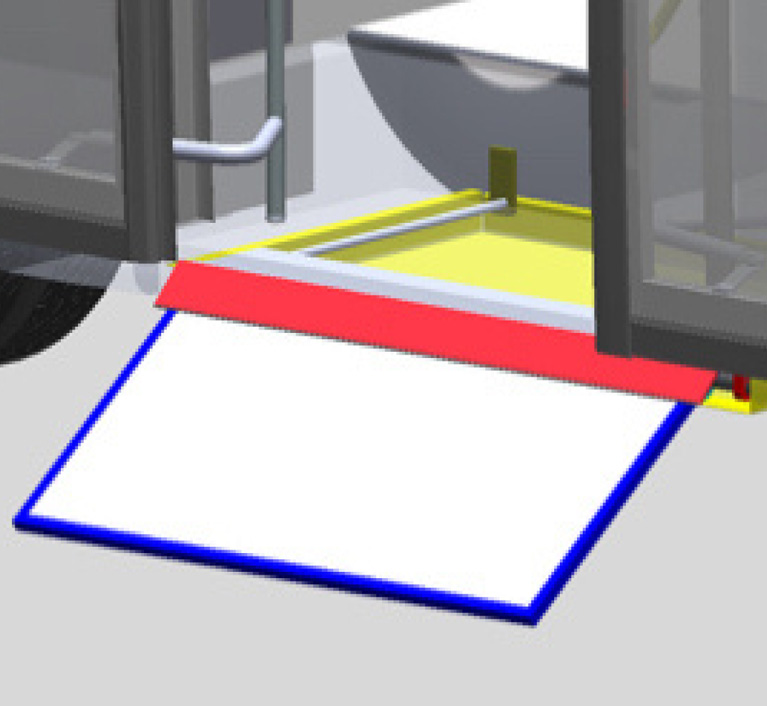

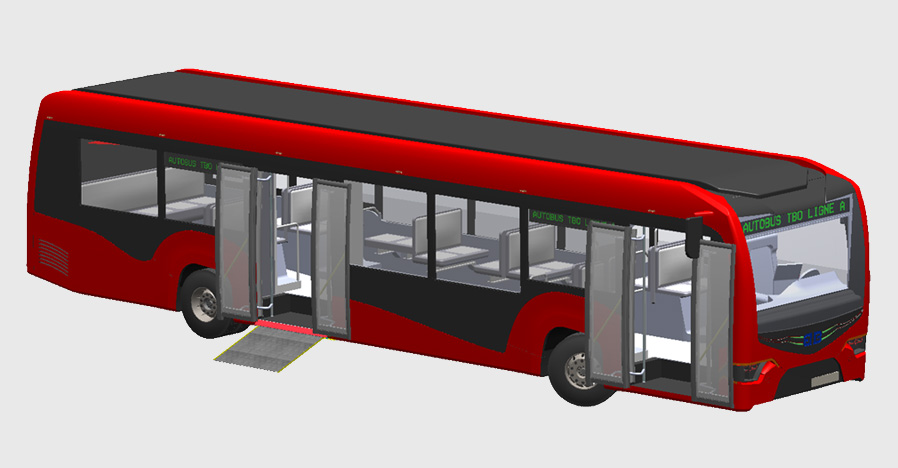

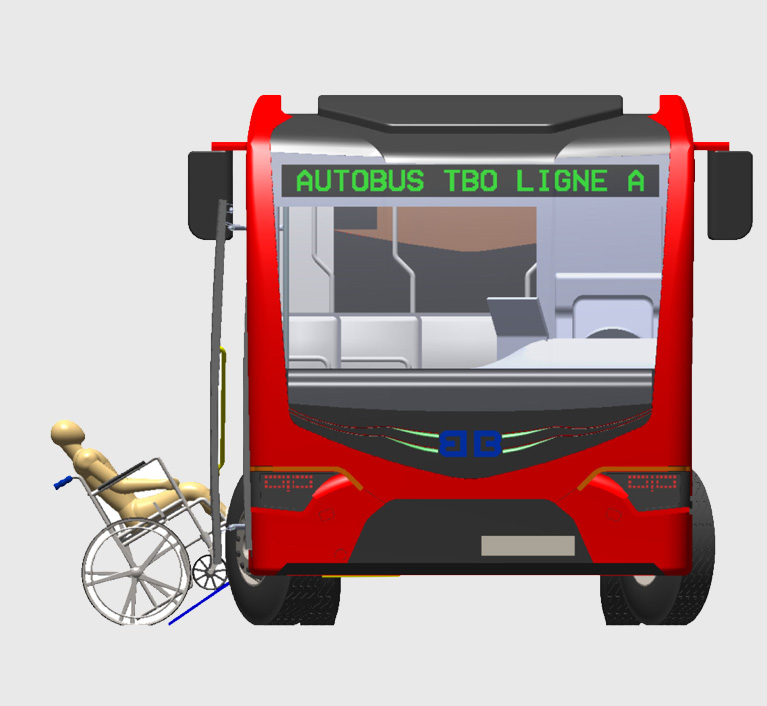

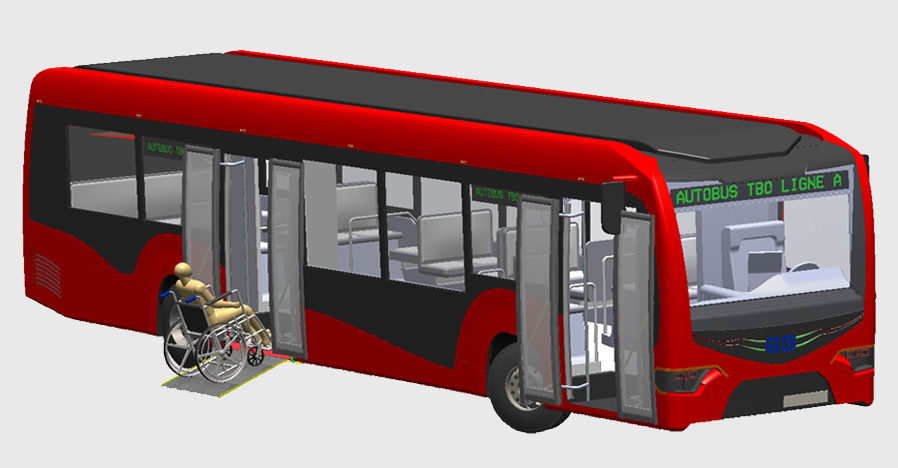

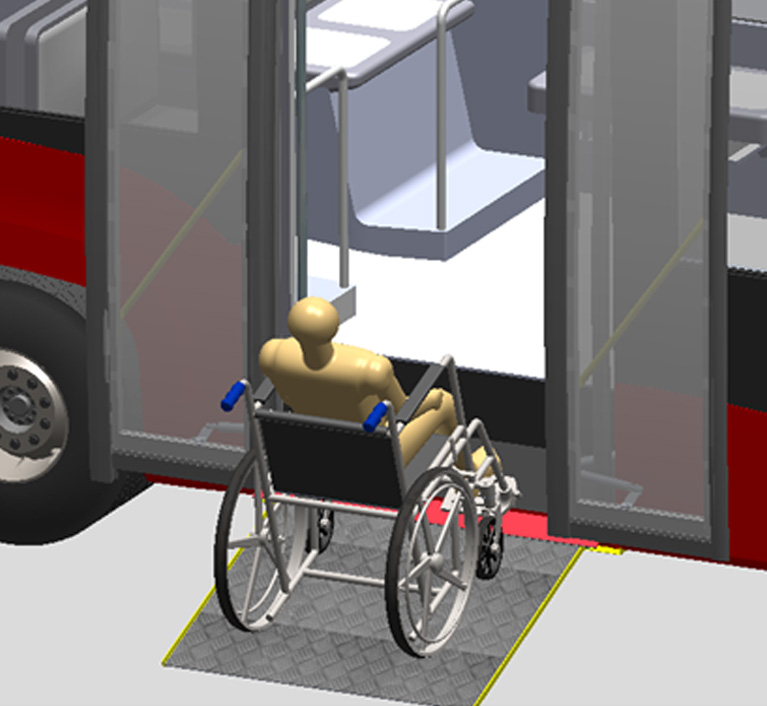

Pneumatic Wheelchair Ramp
The pneumatic entrance ramp is designed to enable smooth and safe boarding for wheelchair users in buses. Driven by a pneumatic mechanism, it allows for automatic deployment and retraction with minimal manual effort, enhancing accessibility and operational convenience.
- Frame Construction: Manufactured with high-grade stainless steel outer framing and a lightweight honeycomb platform, ensuring an optimal balance between durability and reduced structural weight.The pneumatic entrance.

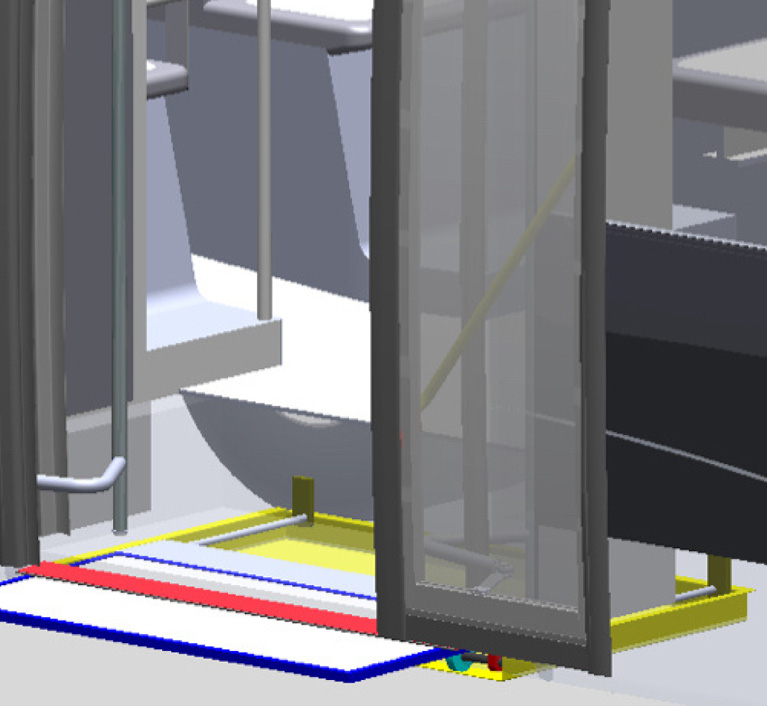

- Mounting: Underfloor chassis installation for optimal space utilization and seamless integration into the vehicle’s structure.
Advantages
Modular design ensures adaptability across various bus platforms.
Can be easily detached from the vehicle floor for servicing without affecting the vehicle’s structural integrity.
Made with corrosion-resistant materials, suitable for extended use in varying environmental condition.
Technical Data
- Maximum Load Capacity: 350 kg
- Ramp Width: 1200 mm
- Overextension Length: 600–750 mm
- Operation Time: 8–10 seconds
- Angular Rotation: Up to 210° ± 5° relative to the bus floor
- Power Supply: 24 V DC ± 10 V
- Power Consumption: 4.5 W per stroke
- Ramp Weight: 50 kg
- Maintenance Interval: Every 3 months
Safety Features
- Non-slip tread surface for enhanced user safety during operation.
- Proximity switches provide live status to the driver (open/closed).
- Low-maintenance design-requiring only periodic lubrication of slides and pneumatic cylinder bearings.

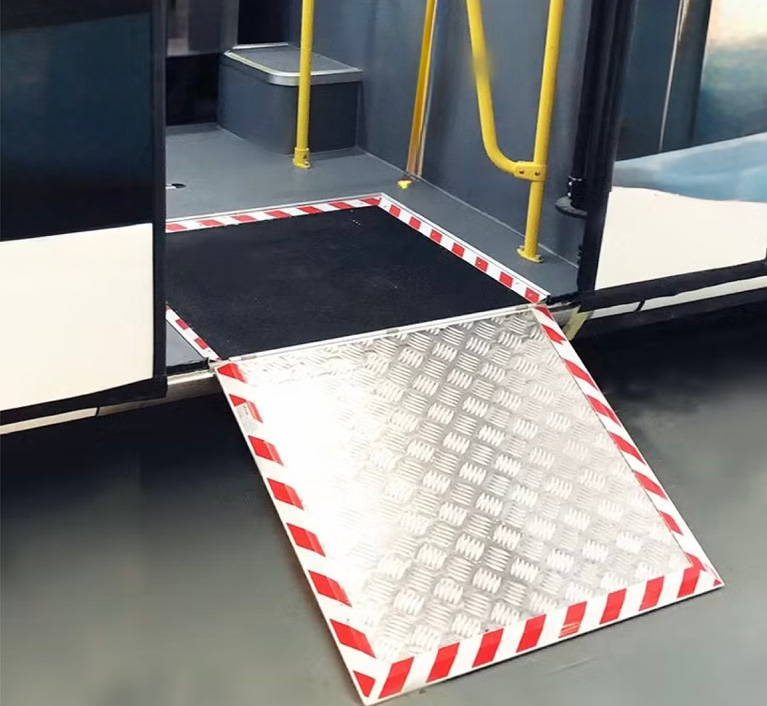

Manual Wheelchair Ramp
A manual bus ramp is a foldable, non-powered device designed to provide wheelchair access on lowfloor buses. Crafted from aluminium-the ramp is light weight and corrosion resistant. It integrates seamlessly into the bus floor and remains flush when not in use. Ramp is manually operated by the driver or attendant, offering a safe and accessible entry for passengers using wheelchairs or other mobility aids.
Technical Data
- Anti-slip surface: Equipped with a checker plate or equivalent coating to provide traction and prevent slips.
- Flush integration: When retracted, the ramp aligns with the bus floor to ensure unimpeded passage and maintain emergency-exit clearances
- Manual deployment: Easily opened and closed by the driver or operator without needing power, ensuring dependable accessibility.
Safety & Functional Features
- Fully extended dimensions: 920 mm (L) × 735 mm (W)
- Weight: 15 kg
- Mounted directly to the bus floor using a built-in hinge
- Load capacity: up to 350 Kg
