Manual & Pneumatic Doors For Buses

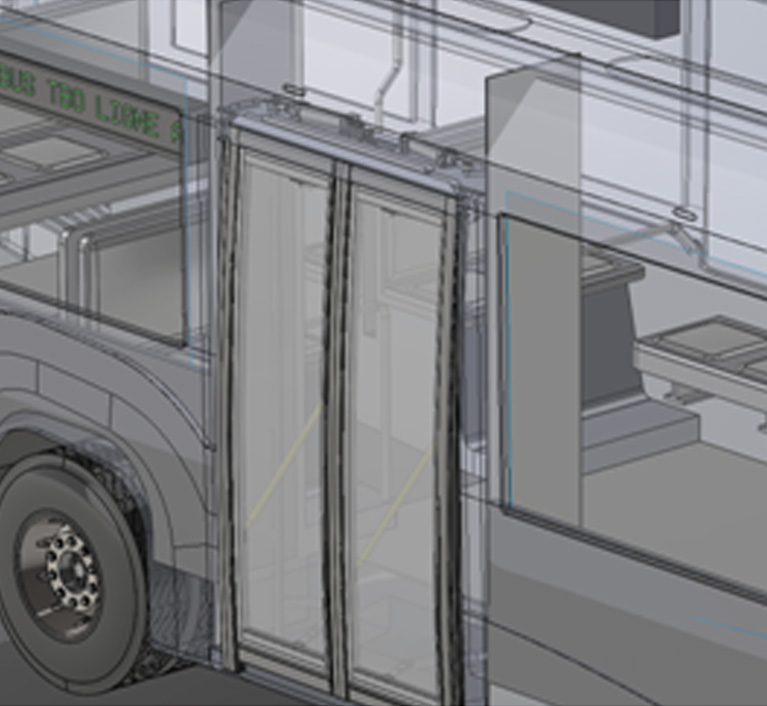

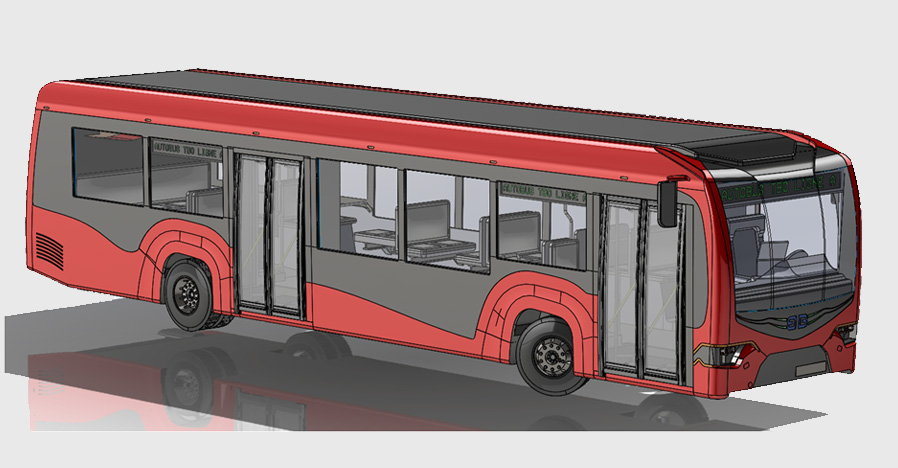

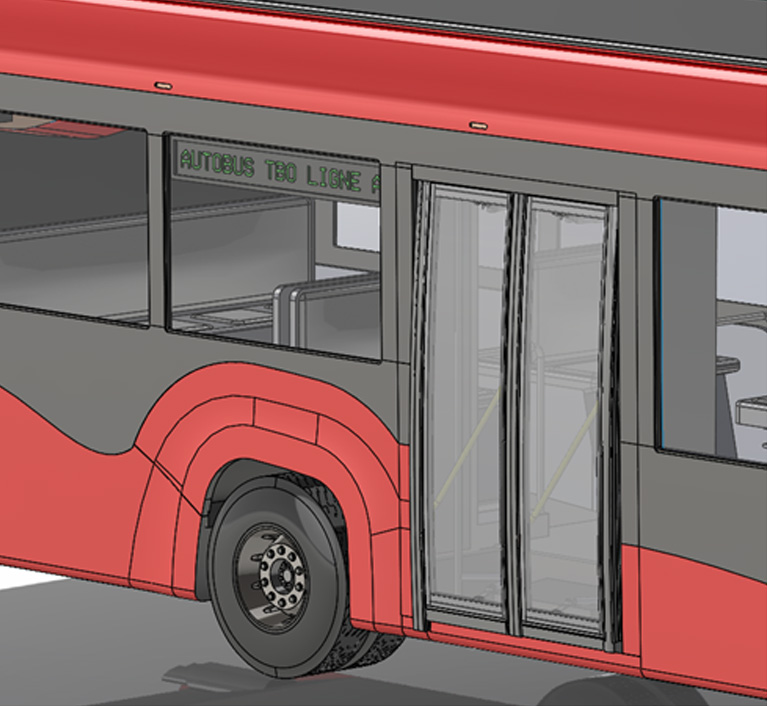

Double Leaf Out-Swing Door
- Door leaves are constructed using Mild Steel and Aluminium Sections, fitted with single toughened glass panels for durability and aesthetics.
- Modular architecture ensures simplified installation and convenient maintenance.
- Rotating bars mounted on ball bearings enable smooth, long-lasting performance.
- Top guide pins feature bearings for quiet and efficient movement.

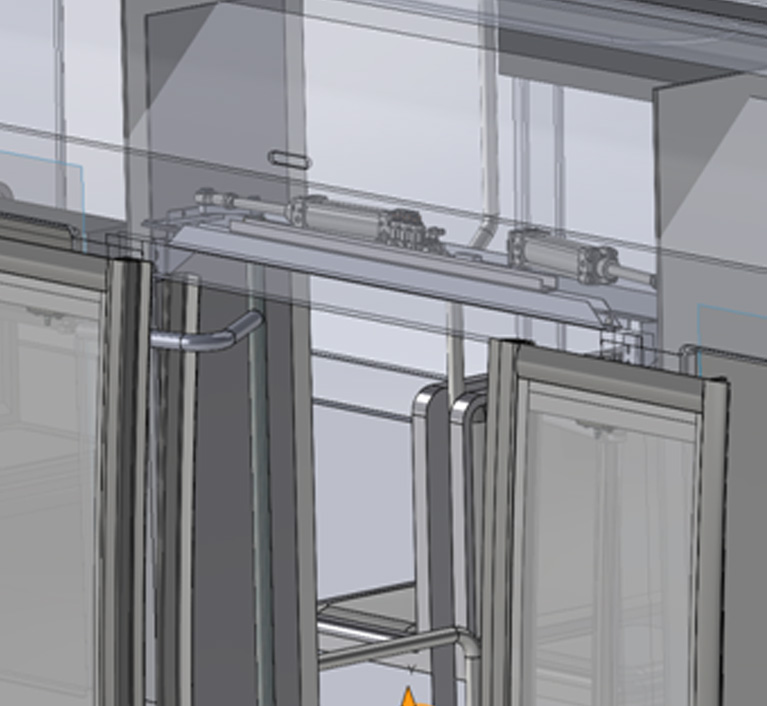

- Pneumatic actuator mounted on a swivel bearing ensures fluid door operation.
- High-quality profile rubber gaskets provide excellent sealing against dust, noise, and moisture.
- Equipped with pneumatic cylinders conforming to ISO 15552 standards, ensuring quality and compatibility.
Advantages
01

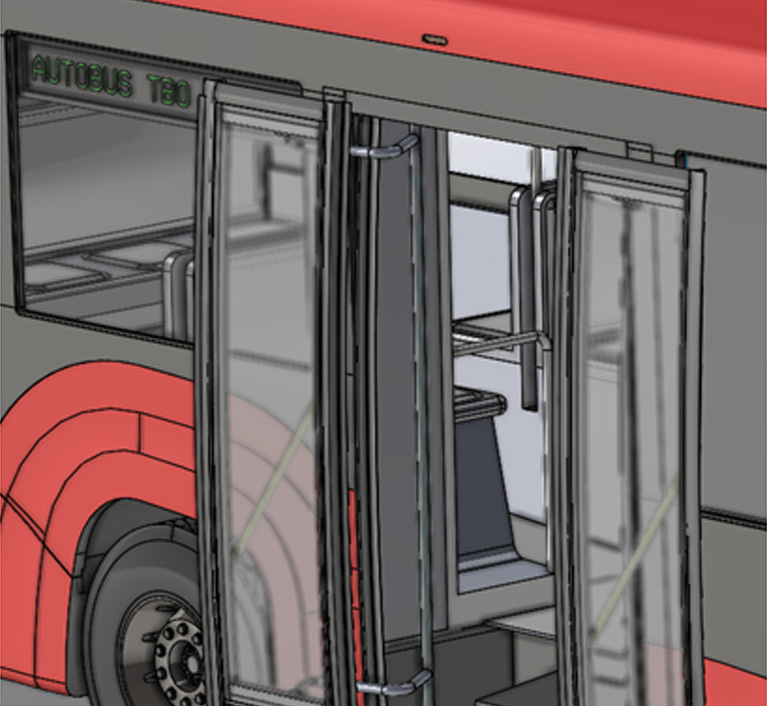

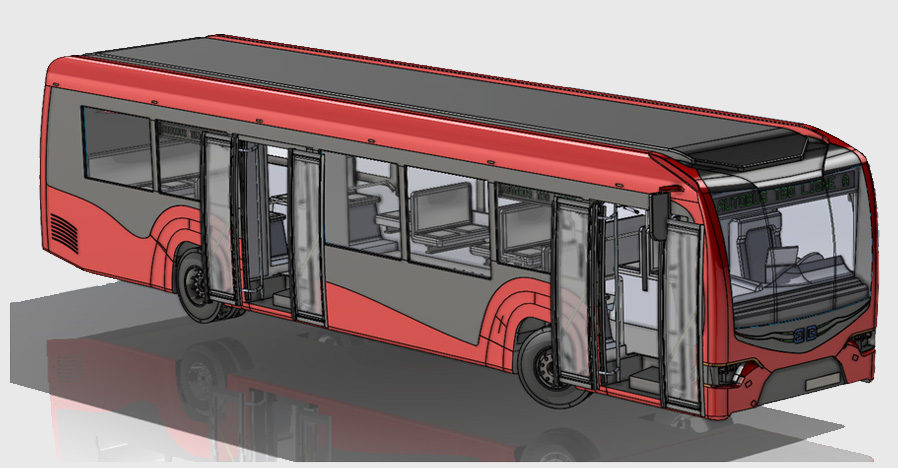

Outward-swinging design frees up interior space by moving the door leaves outside the bus body.
02
Dual-mode functionality allows both pneumatic and manual operation.
03
Emergency access controls provided at both driver and passenger sides.
04
Powder-coated Mild Steel parts offer extended resistance to wear and corrosion.
05
Cost-effective maintenance requiring periodic lubrication of hinges, guide bearings and pneumatic cylinder bearings every 3 months or 40,000 cycle.
Technical Data
- Operating Pressure: 4–6 Bar
- Aperture Width: 1210–1300 mm
- Power Supply: 24V DC ±5%
- Maintenance Interval: Every 3 months or after 40,000 cycles
- Opening Time: 4–5 seconds
- Power Consumption: 4.5W per stroke
Safety Features
- Toughened safety glass in both door leaves enhances passenger protection.
- All components adhere to relevant Automotive ISO Standards.
- Anti-pinch functionality prevents accidental injury during door movement.
- Emergency open/close switches available both inside and outside the vehicle.
- Audible buzzer or visual indicators signal door operation for added awareness.
