Manual & Pneumatic Doors For Buses

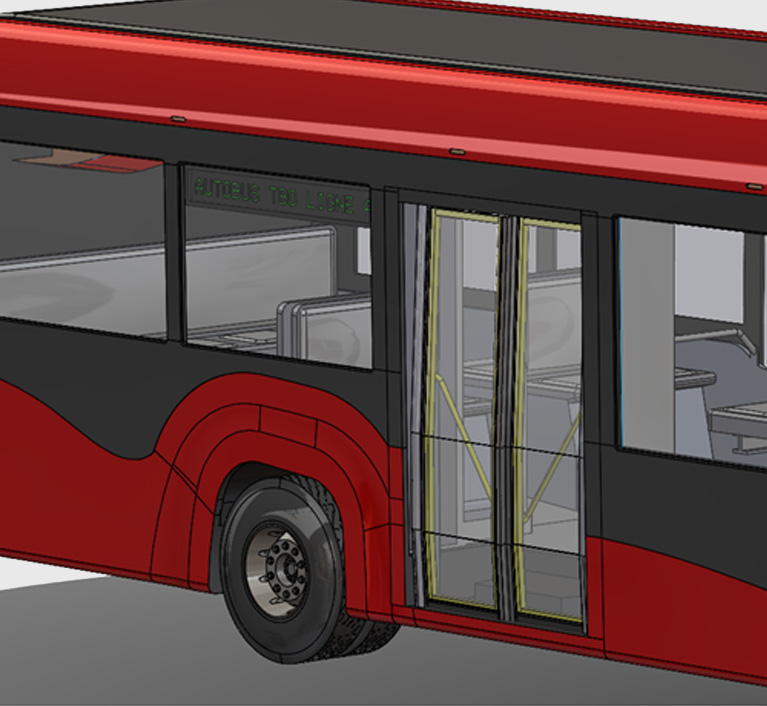

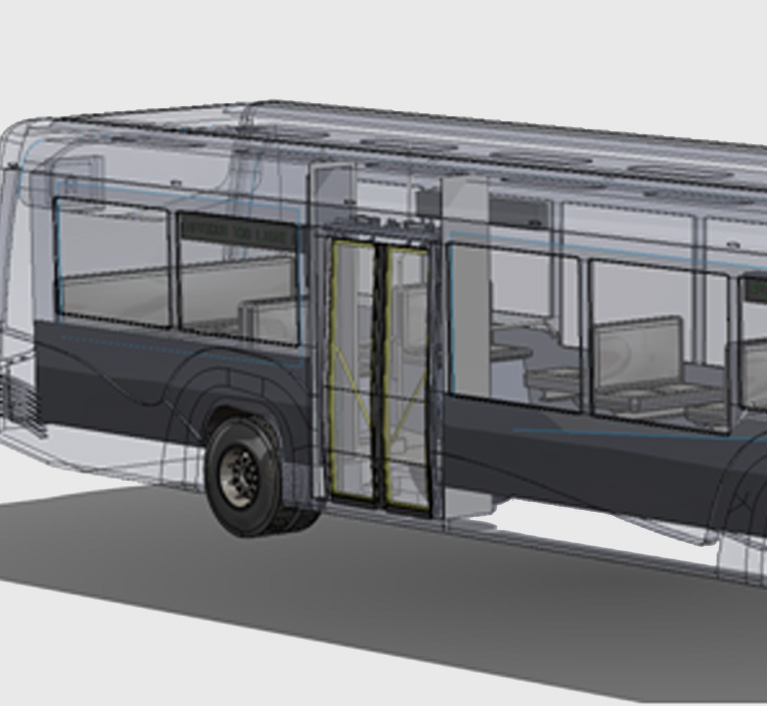

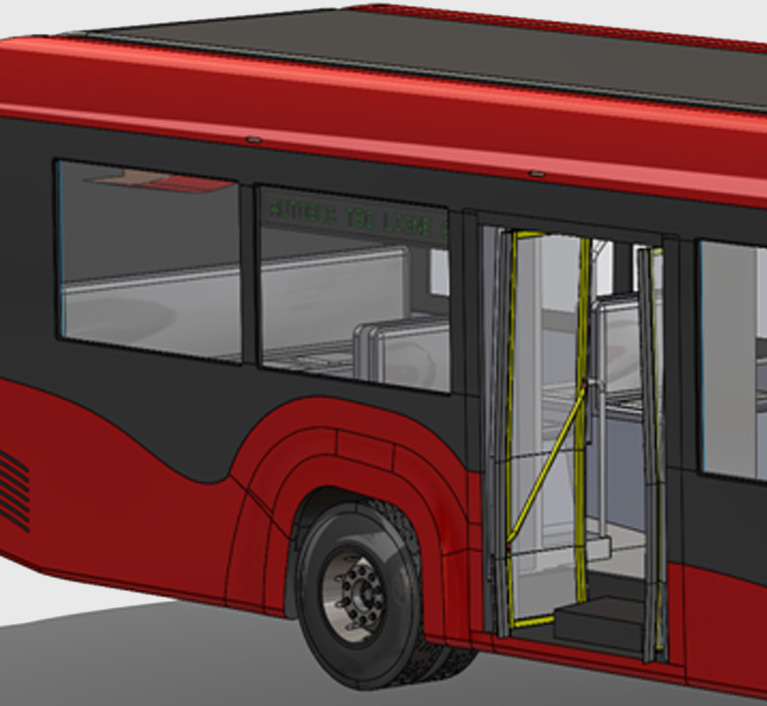

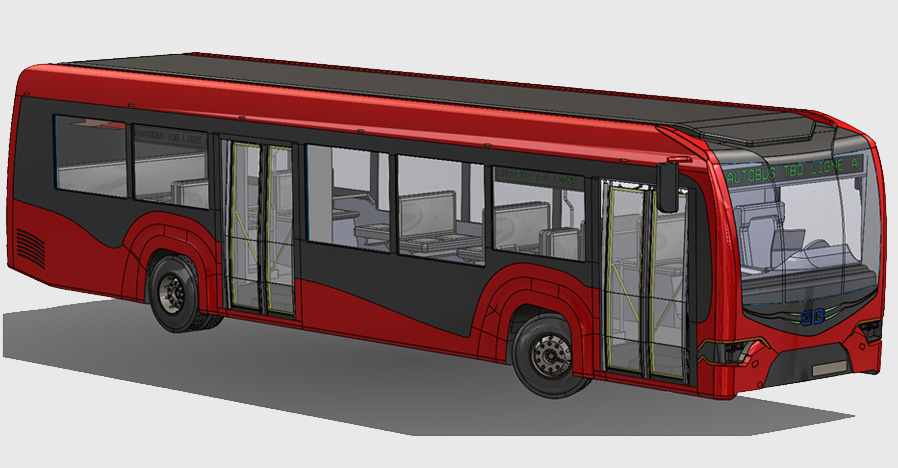

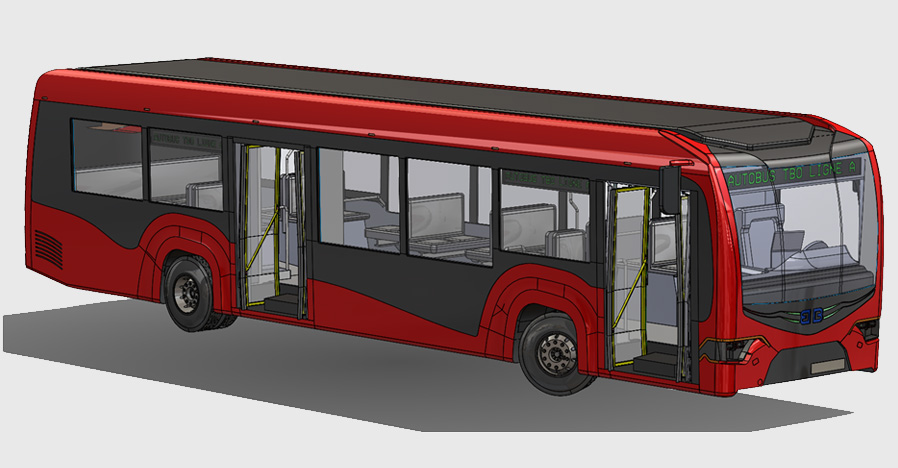

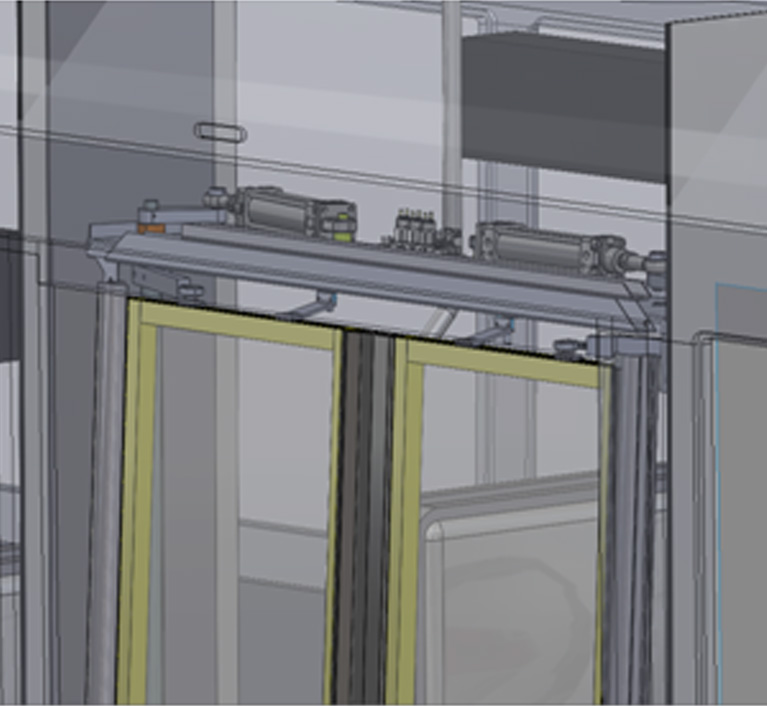

Double Leaf Inswing Pneumatic Door
*Comes in Single Leaf variant as well*
- Door leaves are fabricated using Mild Steel and Aluminium Sections, fitted with single toughened glass panels for strength and aesthetics.
- Modular design ensures easy installation and simplified maintenance.
- Rotating bars mounted on ball bearings provide long service life and smooth operation.
- Top guide pins incorporate bearings to ensure silent, frictionless functioning.
- Pneumatic cylinder mounted on a swivel bearing to allow seamless actuation.
- Fitted with specially profiled rubber gaskets for superior sealing against dust and air leakage.
- Pneumatic cylinders conform to ISO 15552 standards for global quality and compatibility.
Advantages
01
Inward swing design keeps exterior vehicle profile unobstructed, ideal for narrow or high-traffic environments.
02
Dual-mode operation: can be actuated pneumatically or manually in case of emergency or failure.
03
Emergency controls provided at both driver and passenger ends for added safety.
04
Mild Steel components are powder-coated for enhanced corrosion resistance and durability.
05
Low-maintenance design requiring only periodic lubrication of hinges, slide bearings, and pneumatic cylinder components (every 3 months or 40,000 cycles).
Technical Data
- Operating Pressure: 4–6 Bar
- Aperture Width: 1210–1300 mm
- Power Supply: 24V DC ±5%
- Maintenance Interval: Every 3 months or after 40,000 cycles
- Opening Time: 4–5 seconds
- Power Consumption: 4.5W per stroke
Safety Features
- Toughened safety glass in both door leaves enhances passenger protection.
- All components adhere to relevant Automotive ISO Standards.
- Anti-pinch functionality prevents accidental injury during door movement.
- Emergency open/close switches available both inside and outside the vehicle.
- Audible buzzer or visual indicators signal door operation for added awareness.

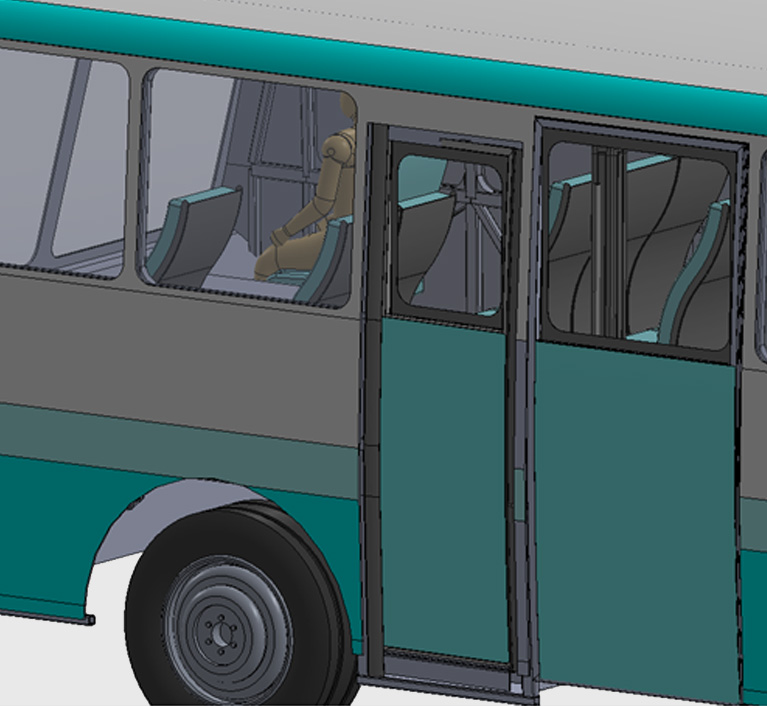

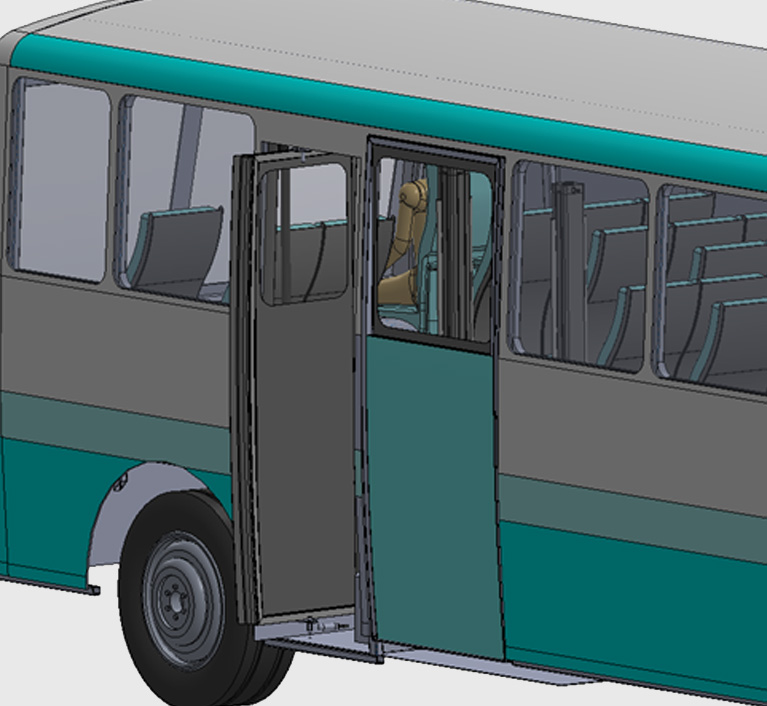

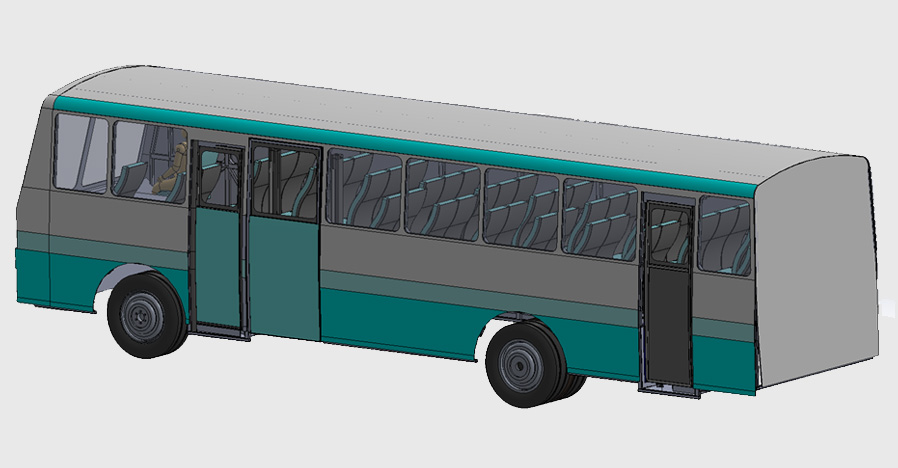

*Single Leaf variant*
